PT-35 Personal Tracker

PT-35 Personal / Asset / Vehicle Tracker

PT-35 is designed for asset, vehicle and personal tracking/security. Its features are

  1. Stand-by time up to 3 yrs (deep sleep mode)
  2. Stop-motion or movement alert/buzzer
  3. Report location at particular date/day/time
  4. External battery/solar panel interface
  5. Panic button and panic input
  6. 1 digital input, 1 analog input / digital input (configurable)
  7. Built-in speaker & microphone
  8. Optional waterproof box and I/O cable set

StarsNav’s latest GPS tracker, PT-35, is designed for vehicle, personal and asset tracking. It is a portable and compact sized device that can be carried in the pocket, hidden in the luxury goods or attached to equipment.

When it comes to asset tracking, the key factors are optimized operation and scheduled reports. PT-35’s unique timer design allows it to remain in deep-sleep mode all or most of the time. It only sends location reports according to the pre-defined schedule, this in turn optimizes PT-35’s operation times ensuring users get the most from each power charge.

Also, PT-35 has an external panic input cable that can be attached to the asset being tracked. When the cable is tampered with, PT-35 will send an alert message and start real time tracking.

Motion detection is important for the elderly or chronically ill. PT-35 has a motion sensor built-in, which is the perfect solution for stop-motion detection. This motion sensor can also be set for movement detection for asset or vehicle security.

PT-35 has a single panic button. In emergency situations the panic button is pressed, the user can then make use of PT-35’s hands-free speaker and microphone to communicate with the control centre or their emergency contacts. Also, PT-35 features a unique single-button design so that the user cannot press the wrong button accidentally.

Moreover, PT-35 can be placed in our optional magnetic base waterproof box with a large rechargeable battery, or with external I/O cable set for attaching to vehicles, such as jet-ski and snow motorcycle, in order to monitor and be powered by vehicles.

We’ve combined all the best features from our previous models with innovative designs that have never been used before in GPS tracking systems. PT-35 truly is the most advanced GPS tracking device of its kind.

To learn more about what StarsNav’s trackers can do, please go to Tracking Solution.

Features:

  • The GPS and GSM modules integrated
  • GPRS/ SMS and Voice I/O
  • Up to 5.000 location / activation messages can be saved (automatic)
  • Built in motion sensor
  • Battery charging circuit to charge 3.7 Volt Li-ion battery
  • Panic input button (will power up the unit from deep sleep mode)
  • Motion Switch
  • Super low battery use in deep sleep mode (low power timer on)
  • (Up to 3 years (*) with 3.7V/800mA battery)
  • Timer circuit for waking up unit by time (hours/minutes/seconds/days/months matched) or any configured time or date.
  • Timer backup battery will last up to 5+ years without battery or external power connected.
  • 18 Pin mini multi I/O connector
  • One digital input (0 to 60VDC)
  • One analogue input (3.3VDC Max) or digital output (0-3.3Volt) (configurable)
  • External battery backup option (to connect second battery or solar panel option)
  • USB to Serial (Serial RS232 port (9600 baud Rate)) for external communication, firmware upgrade or direct access to modern.
  • Build in amplified speaker (1.25Watt output power) and microphone
  • Build in active high performance GPS antenna
  • Unit can be activated from deep sleep mode by using panic input, wire connection (activate the unit when wire is broken or cut) or when closed loop is opened.
  • Low battery led indicator
  • Status and GPS led indicator
  • Build in buzzer for warning and motion alert
  • External option to connect speaker and mic
  • Operating temperature range -25 °C to +70 °C(Battery 0 ±60 °C.)

*This assumes that the battery has negligible self-discharge

Possible Applications:

  • Equipment/goods security/ tracking
  • Special vehicle security/ tracking (Jetski, motorcycle, motor boat, snow motorcycle, etc.)
  • Container security/ tracking
  • Criminal control
  • Child care
  • Chronically ill safety - dementia sufferer, senior people
  • Outdoor recreation - travel, hiking, bike riding
  • Rescue operations
  • Animal tracking
  • Safety of police force or security guard
  • Military use - locate soldiers on the battlefields
  • Sales/technical force management
  • Physical Characteristics:
    Unit size: LxWxH 90.4x 38.4 x 15.1 mm (18.25 max) Plastic / Waterproof if required
    Case Environmental Characteristics:
    Operational Temperature: - 25 ~ + 70 ¢XC (board temperature) Storage temperature -40¢XC to +80¢XC
    1 Multi I/O connector (18 pin with locking pins)
    1 On/Off switch / 1 Park switch / 1 Panic button

    Electrical Characteristics:
    Input Voltage: + 5 Volt DC regulated (USB port power)
    Power Consumption: Depending on operating mode between 10- hours and 3 years(*) (when using 800mA battery).

    GPS Specifications:
    Ublox- LEA-4S or Ublox¡V LEA-5S chipset version

    Parameter Specification
    Receiver Type: L1_frequency, C/A Code, 16-Channels, 8192_time/frequency_search_windows
    Max Navigation Update Rate: 4 Hz

    Accuracy Position
    Position DGPS / SBAS2
    2.5m CEP3 5.0m SEP4
    2.0m CEP 3.0m SEP

    Acquisition GPS Mode
    Cold Start 34 Sec (First time fix can be between 1-3 minutes) Warm Start 33 Sec
    Hot Start <3.5 Sec
    Reacquisition <1 Sec

    Sensitivity
    Tracking-158 dBm (Up to ¡V160 dBm for Ublox-5) Acquisition & Re-acquisition -148 dBm

    Cold Starts-142 dBm

    GSM Modem Specifications:
    Power supply Single supply voltage 3.4V ¡V4.5V
    Power saving Typical power consumption in SLEEP mode to 3mA

    Quad-band: 900, DCS 1800, PCS 1900,EGSM 850, DCS 1800, PCS 1900
    Compliant to GSM Phase 2/2+ GSM class Small MS

    Transmit power Class 4 (2W) at EGSM900
    Class 1 (1W) at DCS1800 and PCS 1900
    GPRS connectivity
    GPRS multi-slot class 10
    GPRS mobile station class B Build in TCP/IP support.
    Temperature range
    Operation: -25°C to†70°C
    Storage temperature -40°C to †80°C

    DATA
    GPRS:
    CSD:

    GPRS data downlink transfer: max. 85.6 kbps GPRS data uplink transfer: max. 42.8 kbps Coding scheme: CS-1, CS-2, CS-3 and CS-4
    Supports the protocols PAP (Password Authentication
    Protocol) usually used for PPP connections. Integrated TCP/IP protocol.
    Support Packet Switched Broadcast Control Channel (PBCCH) CSD transmission rates: 2.4, 4.8, 9.6, 14.4 kbps, non-transparent Unstructured Supplementary Services Data (USSD) support
    SMS, MT, MO, CB, Text and PDU mode
    SMS storage: SIM card
    Support transmission of SMS alternatively over CSD or GPRS. User can choose preferred mode.
    FAX Group 3 Class 1
    SIM interface Supported SIM card: 1.8V ,3V

    Audio Features Speech Codec Modes:
    Half Rate (ETS 06.20) Full Rate (ETS 06.10)
    Enhanced Full Rate (ETS 06.50 / 06.60 / 06.80) Echo cancellation
    Noise reduction
    Phonebook management Supported phonebook types: SM, FD, LD, MC, RC, ON, ME,BN,VM,LA,DC,SD
    Application Toolkit Supports SAT class 3, GSM 11.14 Release 98
    Real time clock Implemented
    Timer function Programmable via AT command
    Firmware upgrade: firmware upgradeable over serial interface Coding schemes and maximum net data rates over air interface Coding scheme 1 Timeslot 2 Timeslot 4 Timeslot
    CS-1: 9.05kbps 18.1kbps 36.2kbps
    CS-2: 13.4kbps 26.8kbps 53.6kbps CS-3: 15.6kbps 31.2kbps 62.4kbps CS-4: 21.4kbps 42.8kbps 85.6kbps

    GPS/ GSM Antenna Specifications:
    Build into the unit.

    Power Use :
    Using 800mA/ 3.7Volt battery.

    The PT-35 has 3 different working modes. Depending on configuration settings power consumption will be as shown here.

    Normal running mode:
    GSM on ¡V GPS on ¡VTimer running ¡V Panic ¡V Digital input ¡V ADC input on
    Will last 10 Hours.

    No movement and inputs activated for 5 minutes then:
    GSM on ¡V GPS off ¡VTimer running ¡V Panic ¡V Digital input ¡V ADC input off
    (No activation last 4 to 11 Days ¡V Depending on GSM provider refresh rate)

    Basic sleep mode:
    GSM on ¡V GPS on ¡VTimer running ¡V Panic ¡V Digital input ¡V ADC input on
    Will last 10 Hours.

    No movement and inputs activated for 5 minutes then:
    GSM off ¡V GPS off ¡VTimer running ¡V Panic ¡V Digital input ¡V ADC input off
    Will last up to 55+ days (*).

    Deep sleep mode:
    GSM on ¡V GPS on ¡VTimer running ¡V Panic ¡V Digital input ¡V ADC input on
    Will last 10 Hours.

    No movement and inputs activated for 5 minutes then:
    GSM off ¡V GPS off ¡VTimer running ¡V Panic ¡V or wire loop connected
    Will last up to 3-5+ years (*)

    *This assumes that the battery has negligible self-discharge

    Standard Package:

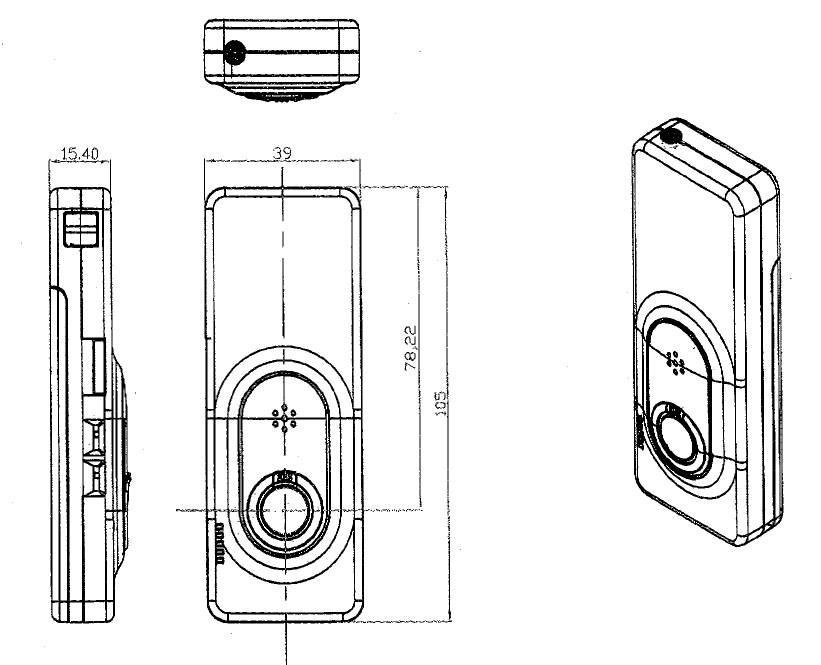

    Dimensions:
